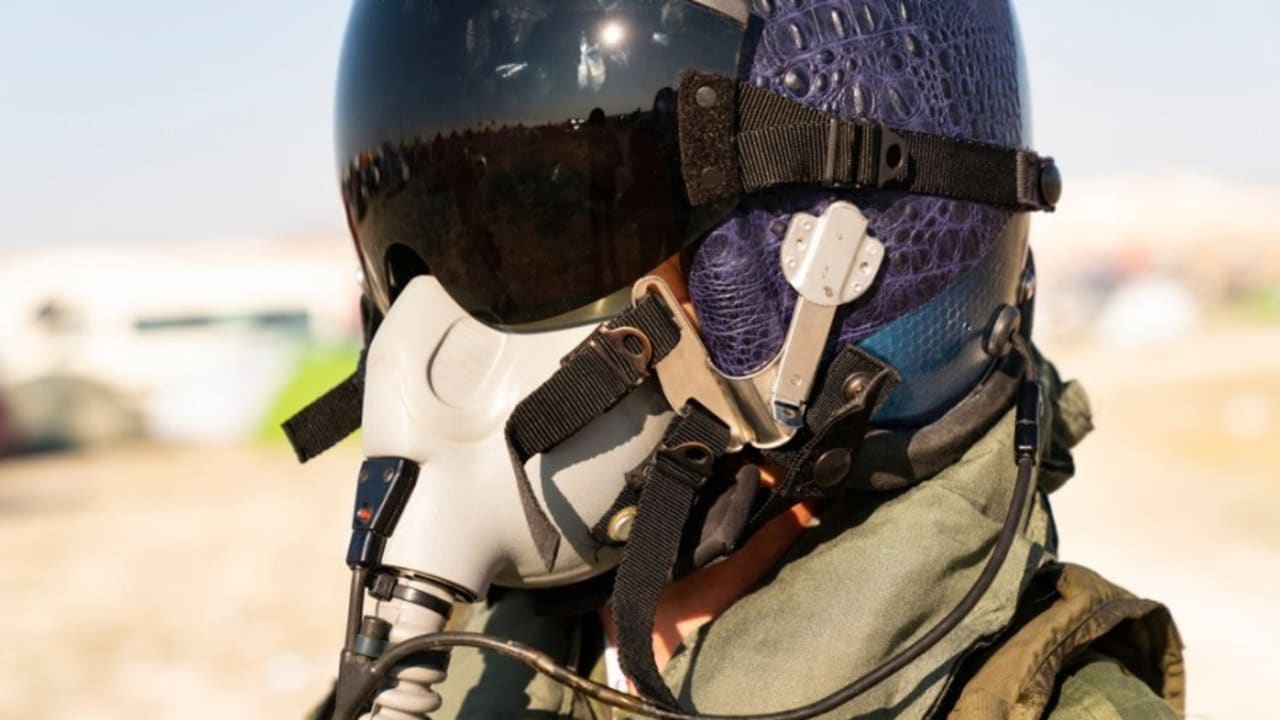

The revolution in the skies begins with the eyes. The helmet-mounted display system installed inside the pilot’s helmet allows full control of the aircraft’s systems using only eye and head movements, eliminating the physical limitations of the aircraft’s metal structure and providing a decisive tactical advantage in air combat and ground-attack missions.
The world of military aviation has undergone dramatic changes over the past decades, but it seems that the greatest leap has occurred especially in the equipment worn on the pilot’s head. The HMDS helmet, short for Helmet-Mounted Display System, is far more than a means of head protection. It is a wearable supercomputer that connects human senses with the technological capabilities of the most advanced fighter aircraft in the world. The development, considered one of the peaks of the defense industry, was born from an operational need to reduce the cognitive load on pilots during complex missions. In older aircraft, the pilot had to look down at the instrument panel to obtain data about altitude, speed, or fuel status, and then look forward again toward the target. Those seconds during which the pilot’s gaze was directed into the cockpit were critical and sometimes even fatal.
The development of the system took many years and required cooperation between major companies, with a central portion of the knowledge and manufacturing coming from Israel. The goal was to create a situation in which the aircraft and the pilot become a single entity. The system operates through a network of six infrared cameras positioned at strategic points around the aircraft’s body. These cameras transmit real-time video to the aircraft’s central computer, which processes the data and projects it onto the helmet visor. The result is remarkable. When the pilot looks downward, they do not see the cockpit floor or their legs, but the ground beneath the aircraft. When they look backward, they see the tail and the area behind them without any obstruction from the mechanical structure. This ability to see through the aircraft provides 360-degree situational awareness, something that was considered science fiction only a few years ago.
From an electronic standpoint, the system operates as an extremely advanced stage of real-time data processing. The process begins in the central processing unit, which receives input from all of the aircraft’s sensors, including radar and electronic warfare systems. The first electronic challenge is data fusion. The computer must take the digital signals from the cameras and stitch them together into a single continuous panoramic image. This requires enormous bandwidth for data transfer through optical fibers running from the aircraft’s body directly to the helmet through a thick, shielded cable connected to the ejection seat.
Inside the helmet itself are two miniature projectors, one for each eye, based on liquid crystal on silicon technology. These projectors operate by transmitting light through a layer of liquid crystals positioned on a reflective silicon substrate. The electronics control each pixel individually, determining how much light will be reflected from it. The reflected light then passes through a series of complex optical lenses embedded within the visor, creating the effect that the pilot sees the information as if it were floating at an infinite distance in front of their eyes.
At the same time, one of the most critical electronic components of the helmet is the head-tracking system. In order for the computer to know what to project to the pilot, it must know exactly where the pilot is looking down to fractions of a second. Magnetic transmitters installed in the cockpit create a weak electromagnetic field around the pilot’s head. Sensors mounted on the helmet detect changes in this field, allowing the system to calculate the exact orientation of the head along six axes.
In addition to the magnetic system, there is also optical tracking that uses small LED lights mounted on the helmet and cameras in the cockpit that track them. The combination of the two technologies ensures that even during sharp maneuvers, when the pilot’s head is pushed sideways, the display remains completely stable and aligned with the external reality. If the system detects a deviation of even half a degree, it immediately corrects the image to prevent navigation errors or mistakes when locking onto targets.
The helmet itself is manufactured from extremely lightweight composite materials such as carbon fiber in order to reduce the weight placed on the pilot’s neck. This is a critical detail because during aggressive maneuvers involving high G-forces, the helmet’s weight can effectively multiply several times. A helmet that is too heavy could cause severe neck injuries or prevent the pilot from functioning properly. Therefore each helmet is individually fitted to the pilot’s head using a precise laser scan. The distance between the eyes is measured down to the millimeter to ensure that the display is perfectly aligned with the user’s center of vision. If the fit is not perfect, the pilot may suffer from blurring, dizziness, or double vision, conditions that must never occur at speeds of hundreds of kilometers per hour.
This electronic capability also enables what is known as digital night vision. Instead of using light-amplifying tubes like older night-vision goggles, the helmet receives data from a digital night sensor mounted above the pilot’s forehead or from the aircraft’s cameras. The electronic signal is processed and projected onto the visor in the same way that flight data is displayed. This allows the pilot to see a clean image free of electronic noise, and in the event of a sudden bright flash, the system simply darkens the relevant pixels digitally in order to protect the pilot’s eyes. This capability, together with the three-dimensional sound played through the helmet, directs the pilot precisely to the location from which a threat is coming, so that they know where to direct their gaze and their countermeasures without needing to search for the information across multiple screens.
When examining parallels in civilian aviation, it becomes clear that the technology is slowly making its way into large passenger aircraft as well, although the goals there are completely different. In modern airliners there is a system known as a head-up display, but it is usually installed as a fixed glass panel in front of the pilot rather than as part of a helmet. The civilian system helps pilots land in poor visibility conditions such as heavy fog by projecting the landing path and runway onto the glass. However, the civilian pilot is still limited to looking forward and does not have the ability to see through the aircraft’s structure.
The gap between the military and civilian systems also stems from the enormous cost of the military helmets, each of which can cost hundreds of thousands of dollars, as well as from the fact that civilian pilots are not required to perform maneuvers that demand looking in all directions simultaneously.
In terms of power consumption, the helmet uses a significant amount of energy relative to a wearable device. The electronics operate at relatively high voltages to ensure maximum brightness, and therefore a tiny internal cooling system prevents the electronic components from overheating. The entire system is designed with double redundancy, meaning there are two separate electronic pathways for transmitting data. If one processor fails or if there is a cable malfunction on one side, the system can transfer all critical information through the second channel in less than 50 milliseconds. The use of this technology is also changing the way pilots are trained, turning them into system managers who receive only the most relevant information at any given moment.
The system operates in three main stages at any given moment. In the first stage, sensors on the aircraft’s body collect information from the surrounding environment. In the second stage, the central computer performs data fusion and converts raw data into simple symbols. In the third and final stage, the information is projected onto the visor in a manner that precisely takes the pilot’s head angle into account. This complexity is the reason each helmet is considered a strategic asset that is kept under heavy security. The combination of miniature laser projectors, tracking sensors, and digital data fusion creates the most advanced wearable electronic system ever built. In a world where 90 percent of the required information appears directly in front of the eyes, the pilot enjoys complete air superiority based on the ability to see what was previously invisible.
